In-ear + Triggers Setup - Latest Incarnation

sumdrumguy

Senior Member
The top40/CHR project I am in has some fly-in casino dates coming up. Backline provided, but will still need to take a few things. The major piece that needed tweaking was my in-ear setup. I wanted it small enough for carry on, but also plug and play.

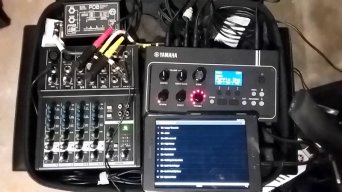

The components in the case are:
Mackie Mix-8
ART Pro Passive DI
Yamaha EAD10
Samsung Tab A

The mixer, DI, and EAD travel wired together. Low profile, right angle cables for the win!

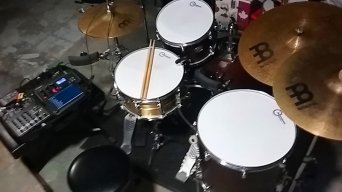

On the kit, connected to the EAD:
Yamaha DT50s - dual zone snare trigger.
Yamaha DT50k - kick trigger.
Roland BT-1 x2 - more portable than full pads.
Yamaha FC5 foot switch - triggers on/off.


All of this, plus the cables/adpaters, fits nicely inside this case: Gator EVA Utility Case (18"x13"x3").

The only hardware needs are two small L-rod multiclamps for the Roland BT-1s. They will travel in my small rolling suitcase with clothes, stick quiver, etc.

I use the EAD to trigger samples. Mostly custom wav files imported into the unit. I also use it as my click for the few songs that don't have a sequence. Sequences run off the tablet.

I know someone will ask... explanation of cables/channels.
Channel 1 = click via headphone jack from the EAD.
Channel 2 = empty. If I want a feed from FOH, it will go there.
Channel 3 = left side of sequences. Click + my vocal cues.
Channel 4 = right side of sequences + samples from EAD (via L out).

Channel 4 is the only line going to the AUX send. All FOH has to do is plug a cable into the DI.

Really happy with how it turned out. So much so that I will probably use this for in-town gigs as well.

In-ear setups are a recurring topic. If this helps someone with theirs, awesome.


*Apologies for the crappy cell phone pics.


sumdrumguy

Senior Member
I think you can do all that with an SPD-SX, no need for a tablet or mixer.

I don't own an SPD-SX. Except for the case, I already had all the components.

I do own a Yamaha Multi-12, but don't like having to make a hard left to play the pads. I prefer to have triggers/pads in front, inside my kit.


Chris Whitten

Well-known member
Sure. I just thought an all in one solution might be easier to carry around and set up.
The SPD-SX has trigger ins, but yes, it can be annoying reaching over to one side to play the onboard pads.
And it's quite an expensive product too.


sumdrumguy

Senior Member
With everything in the one case, it's easy enough to move. Just a touch wider than my Yamaha Multi-12.

Another benefit - at least to my mind. Having the separate components managing different things means more flexibility when issues arise. If my EAD dies, I only lose the samples. If my tablet dies, my cell phone is the back up. If the mixer dies, we can run the lines direct to FOH.

With an all-in-one/multi-pad, everything drops if the unit goes down. I don't have the touring budget for back-up multipads, laptops, etc. :D
